Name: 5080A High Compliance Multi-Product Calibrator
Brand: fluke
SKU: 5080A High Compliance Multi-Product Calibrator
Availability: InStock

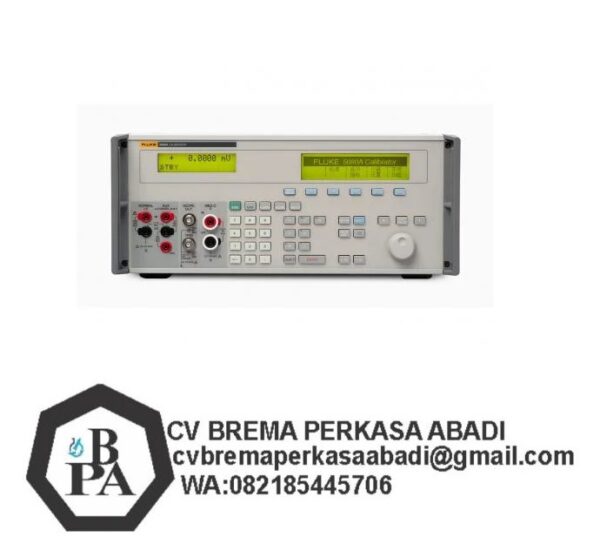

5080A High Compliance Multi-Product Calibrator

$111.00

Spesifikasi: 5080A High Compliance Multi-Product Calibrator

Technical Specifications
Voltage DC	Range: 0 to ±1020V Best 1 Year Specification: ±0.025% of setting
Current DC	Range: 0 to ±20.5A Best 1 Year Specification: ±0.025% of setting
Resistance	Range: 0 to 190 MO, 19 values in x1 and x1.9 Best 1 Year Specification: ±0.025% of setting
Voltage AC	Range: 1 mV to 1020V 45Hz to 1 kHz, Sine Best 1 Year Specification: ±0.25% of setting
Current AC	Range:29 mA to 20.5A 45 Hz to 1 kHz, Sine Best 1 Year Specification: ±0.25% of setting
DC Power	Range:10.9 mW to 20.5 kW Best 1 Year Specification: ±0.125% of setting
AC Power	Range: 10.9 mW to 20.5 kW 45-65 Hz, PF=1 Best 1 Year Specification: ±0.36% of setting
Phase	Range: 0 to ± 179.99° 45 Hz to 1 kHz Best 1 Year Specification: ±0.25° of setting
Frequency	Range: 45 Hz to 1 kHz Best 1 Year Specification: ±50 ppm of setting

General Specifications
Warm up Time	Twice the time since last warmed up, to a maximum of 30 minutes
Settling Time	Less than 5 seconds for all functions and ranges except as noted
Standard Interfaces	RS-232 and Ethernet
Temperature Performance	Operating: 0°C to 50°C Calibration (tcal):15°C to 35°C Storage:-20°C to +70°C
Temperature Coefficient	Temperature coefficient for temperatures outside tcal ±5 °C is 10 % of the stated specification per °C for temperatures in the range of 0 °C to 35 °C. Above 35 °C, the temperature coefficient is 20 % of the stated specification per °C.
Relative Humidity	Operating: <80% to 30°C, <70% to 40°C, <40% to 50°C Storage:<925%, non-condensing
Altitude	Operating: 2,000m (6,500 ft) maximum Non-operating: 12,200m (40,000 ft) maximum
Safety	Meets EN. 61010-1:2001, CAN/CSA-C22.2 No. 61010-1-04, UL 61010-1: 2004
Analog Low Isolation	20V
EMC	Meets EN613261:2006.
Line Power	Line Voltage (selectable): 100V, 120V, 220V, 240V Line Frequency: 47 to 63 Hz Line Voltage Variation: + 25% about line voltage setting
Power Consumption	600 VA
Calibration Documentation	Report of calibration with data included; 17025 accredited report optional
Dimensions	Height:19.3 cm (7.6 in) Width:43.2 cm (17 in), 44.3 cm (17.5 in) including handles Depth:53.8 cm (21.2 in)
Weight (without options)	22 kg (48 lbs.)
Absolute Uncertainty Definition	The specifications include stability, temperature coefficient, linearity, line and load regulation, and the traceability of the external standards used for calibration. It is not necessary to add anything to determine the total specification for the temperature range indicated.
Specification Confidence Interval	99%

SKU: 5080A High Compliance Multi-Product Calibrator Kategori: MEASURMENT Brand: fluke

Cv Brema Perkasa Abadi Adalah distributor resmi Fluke di Indonesia yang menyediakan segala produk Fluke

5080A High Compliance Multi-Product Calibrator

Fitur utama

Calibration solutions for both analog and digital workloads with high compliance and protection circuitry.
Calibrate analog meters, 3.5 and 4.5 digits DMMs, panel meters, watt meters, clamp meters, oscilloscopes up to 200 MHz, and more.
Equipped with versatile software applications for paperless results recording.
Built-in protection circuitry to safeguard against damaging input voltages.

Jika anda membutuhkan produk Fluke silahkan hubungi Cv Brema Perkasa Abadi yang di percaya sebagai Distributor resmi Fluke indonesia
