Name: 5686-B Glass Capsule SPRT
Brand: fluke
SKU: 5686-B Glass Capsule SPRT
Availability: InStock

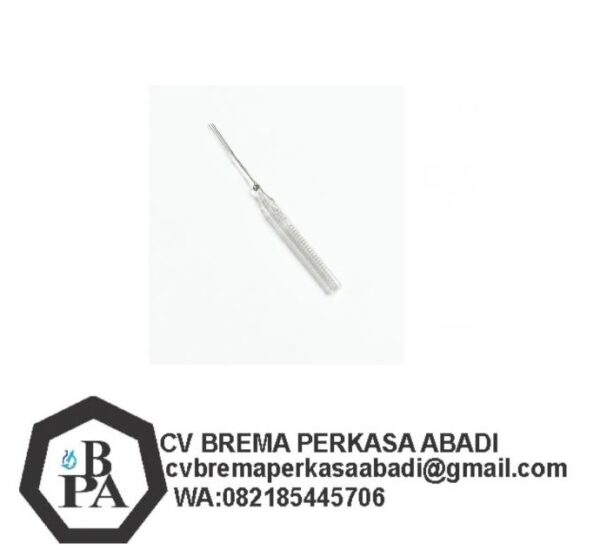

5686-B Glass Capsule SPRT

$111.00

Spesifikasi: 5686-B Glass Capsule SPRT

Specifications
Temperature Range	5686: –260 °C to 232 °C (13 K to 505 K)
Nominal R_TPW	25.5 Ω
Resistance Ratio	W(302.9146 K) ≥ 1.11807 W(234.3156 K) ≤ 0.844235
Drift Rate	5686: < 0.005 °C per year over the entire range
Self-heating at TPW	< 0.002 °C under 1 mA current
Reproducibility	±0.001 °C or better
R TPW Drift After Thermal Cycling	< 0.001 °C
Filling Gas	5686: helium
Lead Wires	Four platinum wires, 30 mm long (1.18 in)
Size	5686: 5.8 mm dia. x 56 mm long (0.23 x 2.2 in)

SKU: 5686-B Glass Capsule SPRT Kategori: MEASURMENT Brand: fluke

Fitur utama
- Miniature glass capsule SPRT designed for metrology work that requires small SPRTs.
- Temperatures range: –260 °C (13 K) to 232 °C and offers stability typically of 0.001 °C over a 100 °C range.
- Ideal for applications such as cryogenics, calorimetry, and other metrology work where traditional SPRTs may be too long or awkward.
- True SPRT, with high-purity platinum wire hand-wound on a glass cross frame in a strain-free design.

Jika anda membutuhkan produk Fluke silahkan hubungi Cv Brema Perkasa Abadi yang di percaya sebagai Distributor resmi Fluke indonesia
