| Function Parameter |

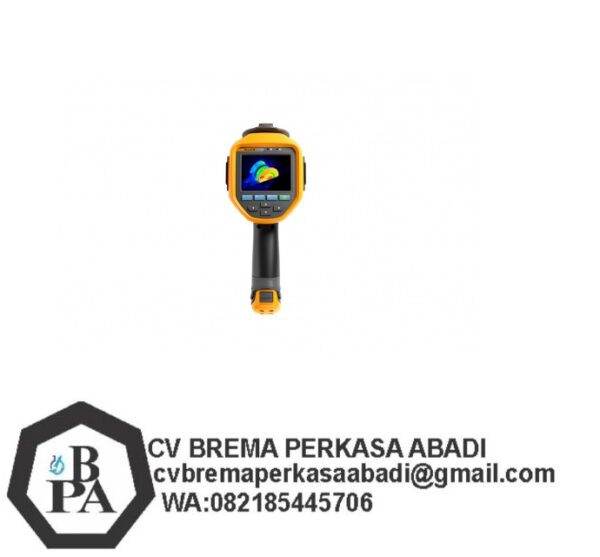

Fluke Ti480u |
Fluke Ti401u |
Fluke Ti300u |
| Basic Parameters |
| IR resolution |
640 × 480 |
640 × 480 |
384 × 288 |
| SuperResolution |
1280 × 960 |
– |
– |
| Detector type |
Uncooled focal plane infrared detector |
Thermal sensitivity (NETD)
@ 30 °C |
50 mk (0.05 °C) |
75 mk (0.075 °C) |
75 mk (0.075 °C) |
| Spectral response |
7 to 14 μm |
| Image frame rate |
30 Hz |
30 Hz |
30 Hz |
| Lens Field of View (FOV) |
25° x 19° |
| Spatial resolution (IFOV) |
0.68 mrad |
0.68 mrad |
1.14 mrad |
| Minimum imaging distance |
0.25 m |
0.1 m |
| Lens focal distance |
f 24.8 |
f 15 |
| Focus |
Auto / Manual Focus |
| Lens recognition |
Auto |
| Optional lens |
2x telephoto lens |
| 4x telephoto lens |
| Wide-angle lens |
| Digital Zoom |
1-10x |
1-10x |
1-4x |
| Measurement Analysis |
| Temperature range |
-20 °C to 1200 °C |
-20 °C to 650 °C |
| Temperature measurement range |
-20 °C to 120 °C |
-20 °C to 120 °C |
| 0 °C to 650 °C |
0 °C to 650 °C |
| 300 °C to 1200 °C |
|
| Intelligent range |
Yes |
Yes |
Yes |
| Temperature accuracy |
±2 °C or 2%, whichever is greater (@ 23 °C ± 5 °C ambient temperature) |
| Temperature measurement area |
Spots: 16 |
| Lines: 8 |
| Areas: 12 |
| Global temperature measurement correction |
Support emissivity, environment temperature, reflected temperature, relative humidity, temperature measurement distance, IR window (temperature and transmittance) correction |
