i650 motec frequency inverter

Cv Brema Perkasa Abadi Adalah distributor resmi Fluke di Indonesia yang menyediakan segala produk Fluke

i650 motec frequency inverter

Technical data	0.37 … 45 kW
Connections	3 AC 230 V 3 AC 400 V 3 AC 480 V Application I/O: 4 x IO-Link port or 8 x digital input or 4 x digital input/4 x digital output Holding brake control Motor temperature monitoring USB C
Communication	EtherCAT EtherNet/IP IO-Link Modbus TCP PROFINET Safety bus CIP Safety Operation with safety PLC

Cv Brema Perkasa Abadi Adalah distributor resmi Fluke di Indonesia yang menyediakan segala produk Fluke

i650 motec frequency inverter

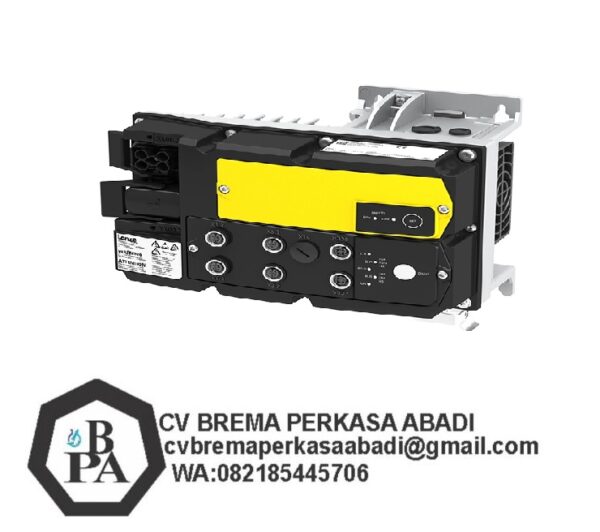

The i650 motec frequency inverter for wall mounting and motor mounting in protection class IP66 (UL Type 4X indoor) is the optimal decentralized drive solution. The inverter can be extended for universal use with an extension box with disconnect switch with/without Type E combination motor controller and operating elements.

The i650 motec frequency inverter stands out from the i550 motec due to its extended range of functions: For simple automation tasks, a logic PLC based on CODESYS in accordance with the IEC 61131-3 standard is integrated in the i650 motec. Table positioning is available for the realization of independent axes and machine modules. The “Extended Safety“ option (safety technology with various functions) rounds off the overall package.

The requirements of the Ecodesign Directive, Standard EN IEC 61800-9-2, are met.

Application areas: Conveyor drives, traveling drives, winding drives, hoist drives, extruders, packaging machines, pumps, fans
