Name: Lenze i650 motec frequency inverter
Brand: Lenze
SKU: Lenze i650 motec frequency inverter
Availability: InStock

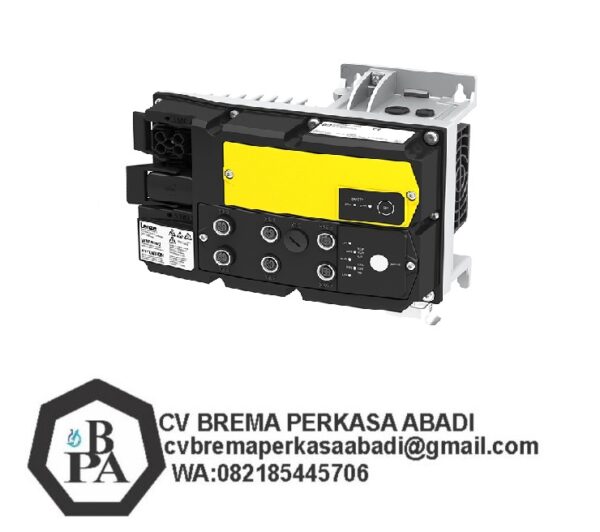

Lenze i650 motec frequency inverter

$110.00

Cv Brema Perkasa Abadi Adalah distributor resmi Fluke di Indonesia yang menyediakan segala produk Fluke

i650 motec frequency inverter

Highlights

Compact solution for decentralized drive technology, wall-mounted or motor-mounted, with high protection class IP66 (UL Type 4X indoor)
Wall-mounted expandable: Extension box with disconnect switch with/without Type E combination motor controller and operating elements
Fast mounting due to pluggable, standardized connections (plug & play)
Four IO-Link ports with limited IO-Link master functionality for easy data exchange between IO-Link sensors and actuators
Integrated regenerative module for very high energy efficiency – a brake resistor is no longer required
Extended range of functions:
Logic PLC
Table positioning
“Safe Torque Off (STO)” via CIP Safety

Technical data and features

Technical data	0.37 … 45 kW
Connections	3 AC 230 V 3 AC 400 V 3 AC 480 V Application I/O: 4 x IO-Link port or 8 x digital input or 4 x digital input/4 x digital output Holding brake control Motor temperature monitoring USB C
Communication	EtherCAT EtherNet/IP IO-Link Modbus TCP PROFINET Safety bus CIP Safety Operation with safety PLC

Jika anda membutuhkan produk Fluke silahkan hubungi Cv Brema Perkasa Abadi yang di percaya sebagai Distributor resmi Fluke indonesia

SKU: Lenze i650 motec frequency inverter Kategori: MEASURMENT Brand: Lenze

Cv Brema Perkasa Abadi Adalah distributor resmi Fluke di Indonesia yang menyediakan segala produk Fluke

i650 motec frequency inverter

The i650 motec frequency inverter for wall mounting and motor mounting in protection class IP66 (UL Type 4X indoor) is the optimal decentralized drive solution. The inverter can be extended for universal use with an extension box with disconnect switch with/without Type E combination motor controller and operating elements.

The i650 motec frequency inverter stands out from the i550 motec due to its extended range of functions: For simple automation tasks, a logic PLC based on CODESYS in accordance with the IEC 61131-3 standard is integrated in the i650 motec. Table positioning is available for the realization of independent axes and machine modules. The “Extended Safety“ option (safety technology with various functions) rounds off the overall package.

The requirements of the Ecodesign Directive, Standard EN IEC 61800-9-2, are met.

Application areas: Conveyor drives, traveling drives, winding drives, hoist drives, extruders, packaging machines, pumps, fans
