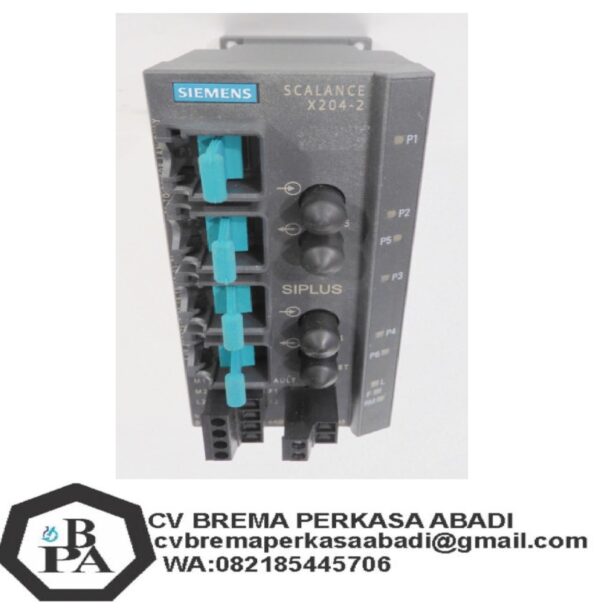

Siemens 6AG1204-2BB10-4AA3 SIPLUS NET SCALANCE X204-2

Cv Brema Perkasa Abadi Adalah distributor resmi Siemens di Indonesia yang menyediakan segala produk Siemens

Siemens 6AG1204-2BB10-4AA3 SIPLUS NET SCALANCE X204-2

Product Description

Category	Parameter	Value
General	Product Type	SIPLUS SCALANCE X204-2 Managed IE Switch
	Operating Temperature	-40°C to +60°C
	Storage/Transport Temperature	-40°C to +70°C
	Protection Class	IP30
	Dimensions (W × H × D)	60 × 125 × 124 mm
	Net Weight	0.78 kg
Interfaces	Ethernet Ports
	10/100Mbit/s RJ45 Ports	4
	100Mbit/s Multimode BFOC Ports	2
	Other Interfaces
	Signaling Contact	1 (2-pole terminal block)
	Power Supply Input	1 (4-pole terminal block)
	Redundant Power Supply	1
	Removable Storage	C-PLUG (optional)
Power	Supply Voltage	24 V DC (18–32 V range)
	Fuse Protection	0.6 A / 60 V
	Max. Current Consumption	0.215 A
	Power Loss (24 V DC)	6.36 W
Environmental	Relative Humidity	100% (incl. condensation/frost, no commissioning when dewed)
	Air Pressure/Altitude Compliance	-40°C to +60°C @ 1080–795 hPa (-1000 to +2000 m)
	Chemical Resistance	EN 60721-3-3 Class 3C4 (salt spray per EN 60068-2-52)
	Biological Resistance	EN 60721-3-3 Class 3B2 (mold/fungus)
	Dust/Sand Resistance	EN 60721-3-3 Class 3S4
Mounting	Supported Methods	35 mm DIN rail, Wall mounting, S7-300 rail
Network Features	Redundancy
	Ring Redundancy Reconfiguration	<0.3 s
	High Speed Redundancy Protocol (HRP)	Yes (with Redundancy Manager)
	Media Redundancy Protocol (MRP)	Yes (Passive listening supported)
	Management
	Web-Based Management	Yes
	CLI Configuration	Yes
	SNMP (v1/v2/v3)	Yes
	Port Mirroring	Yes
	PROFINET IO Diagnosis	Yes
Protocol Support	Telnet/HTTP/HTTPS	Yes
	FTP/TFTP	Yes
	DCP/LLDP	Yes
	SSH	Yes
	NTP/SNTP	Yes
	IGMP/BOOTP/GMRP	No
Diagnostics	Port Diagnostics	Yes
	Error Statistics	Yes
	Packet Size/Type Statistics	Yes
Certifications	Standards
	Hazardous Area Compliance	EN 60079-0:2006, EN 60079-15:2005, II 3G Ex nA II T4
	EMC Immunity	EN 61000-6-2
	EMC Emissions	EN 61000-6-4 (Class A)
	CE Marking	Yes
	KC Approval	Yes
	Marine Certifications (ABS/BV/DNV/etc.)	No

Jika anda membutuhkan produk Siemens silahkan hubun

Cv Brema Perkasa Abadi Adalah distributor resmi Siemens di Indonesia yang menyediakan segala produk Siemens

Siemens 6AG1204-2BB10-4AA3 SIPLUS NET SCALANCE X204-2

SIPLUS NET SCALANCE X204-2 based on 6GK5204-2BB10-2AA3 with conformal coating, -40…+60 °C, managed IE switch, 4x 10/100 Mbps RJ45 ports, 2x 100 Mbps multimode BFOC, LED diagnostics, error signaling contact with set pushbutton, redundant power supply PROFINET IO device, network management, integrated redundancy manager, incl. electronic manual on CD-ROM, C-Plug optional
