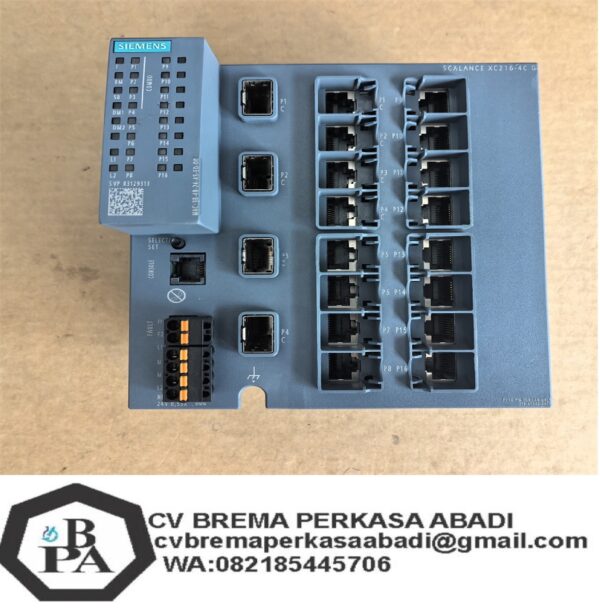

Siemens 6GK5216-4GS00-2AC2 SCALANCE XC216-4C G manageable Layer 2 IE switch
Siemens 6GK5216-4GS00-2AC2 SCALANCE XC216-4C G manageable Layer 2 IE switch
  1. Siemens 6GK5216-4GS00-2AC2 SCALANCE XC216-4C G manageable Layer 2 IE switch
  2. Siemens 6GK5216-4GS00-2AC2 SCALANCE XC216-4C G manageable Layer 2 IE switch

Siemens 6GK5216-4GS00-2AC2 SCALANCE XC216-4C G manageable Layer 2 IE switch

Cv Brema Perkasa Abadi Adalah distributor resmi Siemens di Indonesia yang menyediakan segala produk Siemens

Siemens 6GK5216-4GS00-2AC2 SCALANCE XC216-4C G manageable Layer 2 IE switch

. Basic Specifications

Category Specifications
Model 6GK5216-4GS00-2AC2
Product Type SCALANCE XC216-4C G Managed Layer 2 Industrial Switch
Port Configuration – 12× 10/100/1000 Mbps RJ45 ports
– 4× 1000 Mbps combo ports (RJ45 or SFP)
Redundancy Features Ring redundancy, MRP, RSTP, MSTP, PRP
Mounting Options DIN rail (35 mm), S7-300/S7-1500 rail, wall mounting
Operating Temperature -40°C to +70°C
Protection Class IP20
Weight 1.2 kg

2. Interfaces & Power

Category Specifications
Control Interfaces – 1× RJ11 console port
– 1× signaling contact (2-pole terminal block)
Power Supply – Input: 24 V DC (9.6–31.2 V DC)
– Redundant power input (3-pole terminal block)
Power Consumption 13.2 W (at 24 V DC)
Storage & Transport Temperature: -40°C to +85°C

3. Physical Dimensions & Material

Category Specifications
Dimensions 140 mm (W) × 150 mm (H) × 125 mm (D)
Material Enclosure: Polycarbonate (PC-GF10) / Pressure die-cast aluminum
C-PLUG Slot Yes (for configuration backup)

4. Switching & Performance

Category Specifications
Switching Methods – Cut-Through switching
– Store & Forward (not supported)
Max. Frame Size 1632 bytes
VLAN Support – Port-based, protocol-based, IP-based
– Max. VLANs: 256
QoS & CoS DSCP, Class of Service (CoS)
MTBF 46 years

5. Protocols & Management

Category Specifications
Supported Protocols – Network: HTTP, HTTPS, TFTP, SNMP v1/v2/v3, IGMP, LLDP, DCP, GMRP
– Industrial: PROFINET IO, EtherNet/IP, MODBUS TCP
Management Features – CLI, Web-based management
– RMON, Port mirroring, TRAPs via email
– Configuration via STEP 7
Redundancy Protocols – MRP (Media Redundancy Protocol)
– STP, RSTP, MSTP, PRP
– High Speed Redundancy (HRP)

6. Security & Time Synchronization

Category Specifications
Security Features – IEEE 802.1x (RADIUS)
– SSH, SSL encryption
– Broadcast/Multicast/Unicast Limiter
Time Sync – NTP/SNTP client
– SICLOCK support

7. Certifications & Compliance

Category Specifications
Standards CE, RoHS (2011/65/EU), IEC 62443-4-2:2019 (security)
EMC Compliance EN 61000-6-4 (emission), EN 61000-6-2 (immunity)

8. Additional Features

  • Diagnostics: Port statistics, error counters, SysLog support.

  • DHCP: Server/client with Option 66/67/82 support.

  • PROFINET Conformity: Class B with integrated diagnostics.

  • Environmental: Humidity ≤95% (non-condensing).

Jika anda membutuhkan produk Siemens silahkan hubungi Cv Brema Perkasa Abadi  yang di percaya sebagai Distributor resmi Siemens indonesia

Kategori: Brand:

Cv Brema Perkasa Abadi Adalah distributor resmi Siemens di Indonesia yang menyediakan segala produk Siemens

Siemens 6GK5216-4GS00-2AC2 SCALANCE XC216-4C G manageable Layer 2 IE switch

SCALANCE XC216-4C G manageable Layer 2 IE switch; IEC 62443-4-2 certified; Full gigabit; 12x 10/100/1000 Mbps RJ45 ports; 4x 1000 Mbps combo ports (either 1000 Mbps/ SFPs or 10/100/1000 Mbps RJ45 ports can be used); 1x console port; diagnostics LED; redundant power supply; temperature range -40 °C to +70 °C; assembly: DIN rail/S7 mounting rail/wall; redundancy functions; office features (RSTP, VLAN,…); PROFINET IO device; Ethernet/IP-compliant; C-PLUG slot; IEEE 1588v2 PTP
