| Category | Parameter | Value |
|---|---|---|
| Electrical Specifications | Input | |
| Number of Phases | 3 AC | |
| Line Voltage | 380–480 V (+10%/-20% tolerance) | |
| Line Frequency | 47–63 Hz | |
| Rated Current | ||
| Low Overload (LO) | 5.50 A (400V IEC) 4.60 A (480V NEC) |
|
| High Overload (HO) | 3.60 A (400V IEC) 3.00 A (480V NEC) |
|
| Output | Rated Power | |
| Low Overload (LO) | 2.20 kW (400V IEC) 3.00 hp (480V NEC) |
|
| High Overload (HO) | 1.50 kW (400V IEC) 2.00 hp (480V NEC) |
|
| Rated Current | ||
| Low Overload (LO) | 5.90 A (400V IEC) 4.80 A (480V NEC) |
|
| High Overload (HO) | 4.10 A (400V IEC) 3.40 A (480V NEC) |
|
| Max. Output Current (I<sub>N</sub>) | 6.40 A | |
| Pulse Frequency | 4 kHz | |
| Output Frequency (Vector Control) | 0–200 Hz | |
| Output Frequency (V/f Control) | 0–550 Hz | |
| Overload Capability | Low Overload (LO) | 110% base load for 60s (300s cycle) |
| High Overload (HO) | 150% base load for 60s (600s cycle) | |
| General Specifications | Power Factor (λ) | 0.70–0.85 |
| Displacement Factor (cos φ) | 0.96 | |
| Efficiency (η) | 0.97 | |
| Sound Pressure (1 m distance) | 55 dB | |
| Power Loss | 0.091 kW | |
| Integrated Filter | RFI Suppression (Category C2) | |
| Control & Communication | Control Methods | V/f Linear/Square-law/FCC/ECO Sensorless Vector Control |
| Communication Protocols | PROFINET, EtherNet/IP | |
| I/O Interfaces | Digital Inputs | |
| Standard | 6 (0→1: 11V, 1→0: 5V) | |
| Fail-Safe | 1 | |
| Digital Outputs | ||
| Relay Changeover Contacts | 2 (30 V DC, 5.0 A) | |
| Analog Inputs | 2 (Differential, 10-bit resolution) | |
| Analog Outputs | 1 (Non-isolated) | |
| Motor Temp Sensor (PTC/KTY) | ±5°C accuracy | |
| Environmental | Cooling Method | Integrated Fan |
| Cooling Air Requirement | 0.005 m³/s (0.177 ft³/s) | |
| Installation Altitude | Up to 1,000 m (3,281 ft) | |
| Operating Temperature | -20°C to +45°C (-4°F to 113°F) | |
| Storage Temperature | -25°C to +55°C (-13°F to 131°F) | |
| Max. Relative Humidity | 95% @40°C (non-condensing) | |
| Mechanical Data | Protection Class | IP20 / UL Open Type |
| Frame Size | FSA | |
| Weight | 3.4 kg (7.50 lb) | |
| Dimensions (W × H × D) | 73 × 232 × 218 mm (2.87 × 9.13 × 8.58 in) | |
| Connections | Signal Cable | 0.15–1.50 mm² (AWG 24–16) |
| Line/Motor Terminals | Screw-type, 1.50–2.50 mm² (AWG 16–14) | |
| Max. Motor Cable (Shielded) | 150 m (492 ft) | |
| PE Connection | M4 Screw on Housing | |
| Standards | Compliance | UL, cUL, CE, C-Tick (RCM), EAC, KCC, SEMI F47, REACH |
| Operator Panel (BOP-2) | Display | Monochrome LCD |
| Protection Class | IP55 / UL Type 12 | |
| Weight | 0.140 kg (0.31 lb) | |
| Dimensions (W × H × D) | 70 × 106.85 × 19.60 mm (2.76 × 4.21 × 0.77 in) | |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |

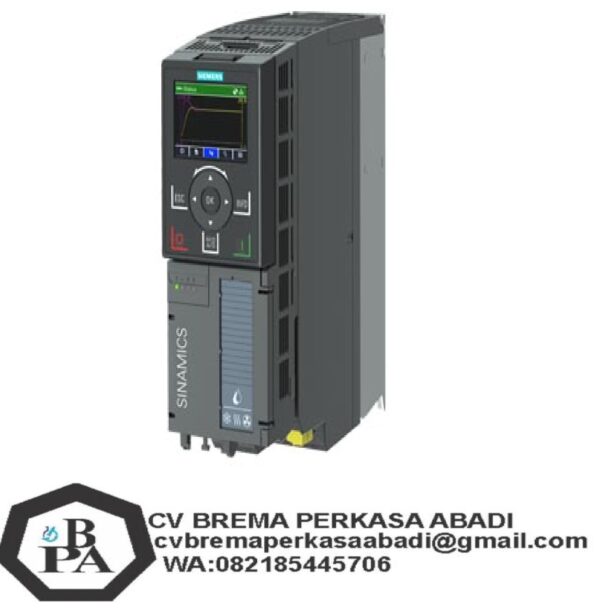

SINAMICS G120X Rated power: 2.2 kW At 110% 60s, 100% 240 s Radio interference suppression filter for category C2 380-480 V 3 AC +10/-20% 47-63 Hz Ambient temperature -20 to +45 °C Size: FSA Degree of protection IP20 / UL open type painting 3C2 with Basic Operator Panel Without IO expansion Fieldbus integrated: PROFINET PN, Ethernet IP
