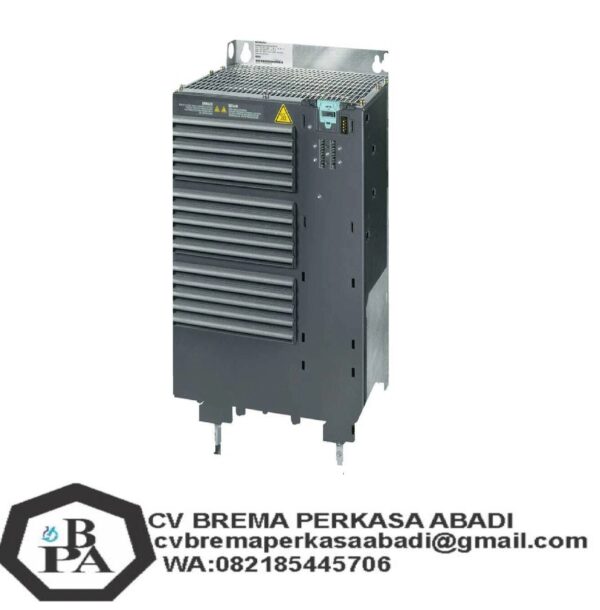

Siemens 6SL3225-0BH31-5AA1 SINAMICS PM260-IP20-FSD-A-690V 15,0KW

Product Description

1. Basic Specifications

Category	Specifications
Model	6SL3225-0BH31-5AA1
Protection Rating	IP20
Weight	23.00 kg
Dimensions	Width: 275.0 mm × Height: 512.0 mm × Depth: 204.0 mm
Cooling Method	Internal air cooling (Cooling air flow rate: 0.044 m³/s)

2. Electrical Parameters

Category	Specifications
Input Side
– Number of Phases	3-phase
– Line Voltage	400V (IEC) / 480V (NEC)
– Power Factor (cos φ)	0.95
– Efficiency (η)	95%
Output Side
– Number of Phases	3-phase
– Rated Voltage	400V (IEC) / 480V (NEC)
– Output Frequency Range	Vector control: 0–200 Hz; V/f control: 0–200 Hz
Overload Capability
– Low Overload (LO)	– 110% rated current for 57 seconds (cycle time: 300 seconds) – 140% rated current for 3 seconds (cycle time: 300 seconds)
– High Overload (HO)	– 150% rated current for 57 seconds (cycle time: 300 seconds) – 200% rated current for 3 seconds (cycle time: 300 seconds)
Power Loss	0.82 kW

3. Environmental Conditions

Category	Specifications
Operating Temperature	– LO Mode: 0–40°C (32–104°F) – HO Mode: 0–50°C (32–122°F)
Storage/Transport Temp.	-25–55°C (-13–131°F)
Relative Humidity	≤95% RH (condensation not permitted during operation)
Installation Altitude	≤1000 m

4. Connections & Cabling

Category	Specifications
Input/Output Terminals	Terminal block (conductor cross-section: 2.50–16.00 mm²)
Max. Motor Cable Length	– Shielded cable: 200 m – Unshielded cable: 300 m
Sound Pressure Level	64 dB (at 1 m distance)

5. Certifications & Standards

Category	Specifications
Certifications	CE Certification (compliant with Low Voltage Directive 2006/95/EC)

6. Notes

Application Scenarios: Industrial motor drives, variable frequency speed control systems, suitable for equipment requiring high dynamic response.
Compatibility: Supports vector control and V/f control, adaptable to complex load demands.
Maintenance Tips: Regularly clean cooling air ducts to ensure heat dissipation efficiency.
